• Country
• Spain

• Manufacturer / Brand
• Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona

• Year
• 1949–1952 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 87262

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH3 EBF2 EF9 EL3 EM4 AZ1

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

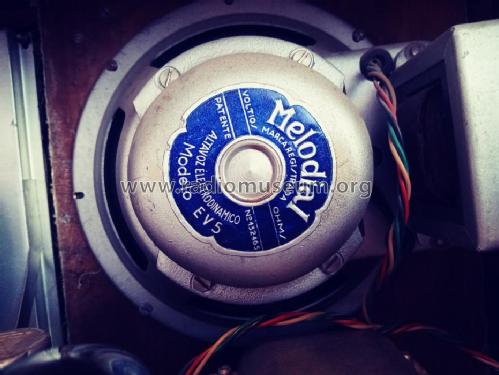

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

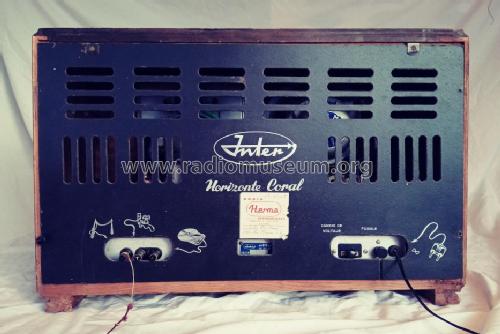

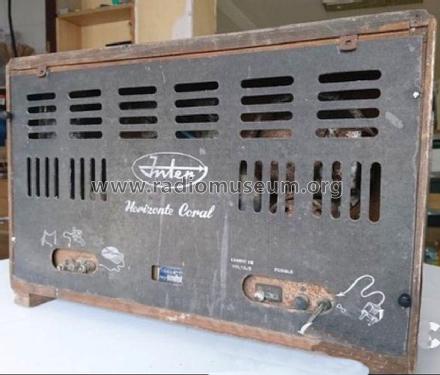

• Model: Horizonte Coral 615-C - Inter Electrónica, S.A., Inter

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 560 x 370 x 260 mm / 22 x 14.6 x 10.2 inch

• Notes

• La caja y el chasis de este modelo son idénticos a los del modelo Komet cambiando el juego de válvulas y algunos componentes.

• Source of data
• -- Collector info (Sammler)
