• Country
• Spain

• Manufacturer / Brand
• Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona

• Year
• 1970 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 168148

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• BC113 BC113 BC158 AC187 AC188 BC113 BC149 AC187 AC187

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 125; 220 / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Cassette CP-357 - Inter Electrónica, S.A., Inter

• Shape
• Portable set > 8 inch (also usable without mains)

• Literature/Schematics (1)

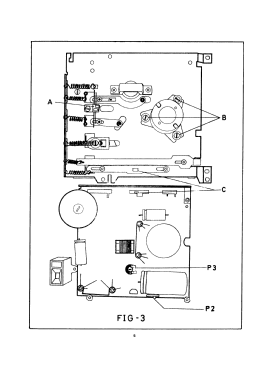

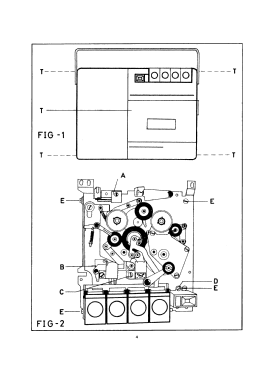

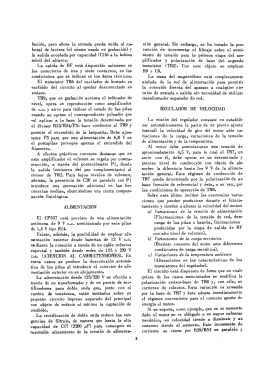

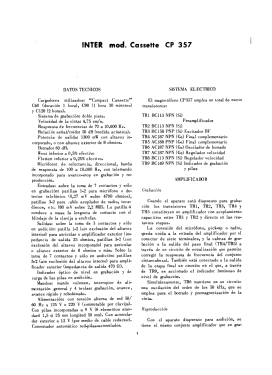

• -- Schematic (Esquemario Magnetófonos y Cassettes REDE, Tomo II, 1973)

• Author
• Model page created by Antonio Barros-Regada. See "Data change" for further contributors.
