- Country
- Spain
- Manufacturer / Brand
- Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona
- Year
- 1956/1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 331256

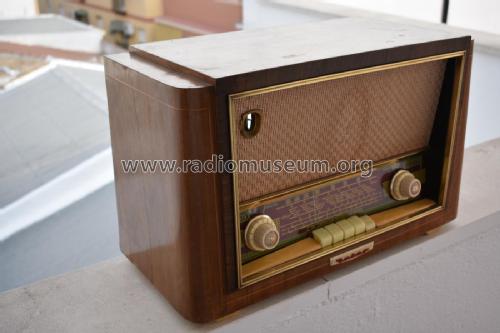

Radio propiedad de un cliente.

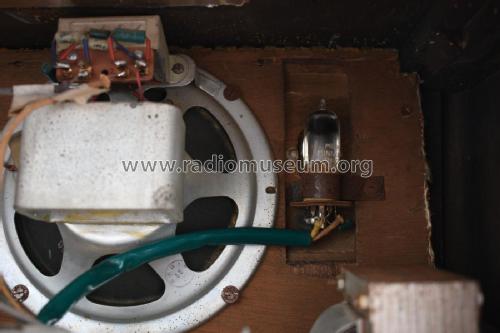

Radio propiedad de un cliente.

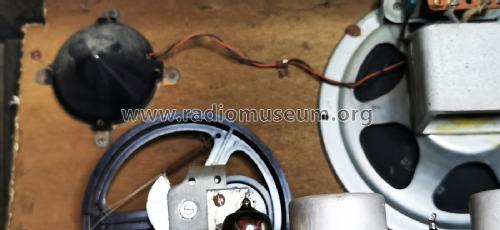

Radio propiedad de un cliente. Tapa trasera.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 90; 110; 125 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ottawa 610-I - Inter Electrónica, S.A., Inter
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 545 x 340 x 250 mm / 21.5 x 13.4 x 9.8 inch
- Notes
-
Lleva 5 teclas con AM, OC1, OC2, Onda Pesquera y entrada de PHONO. Altavoz principal 6.5" y altavoz de agudos. Radarik total ensanche.
- Net weight (2.2 lb = 1 kg)
- 13 kg / 28 lb 10.1 oz (28.634 lb)
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Juan Bautista Ruiz Pérez. See "Data change" for further contributors.
