• Country
• Spain

• Manufacturer / Brand
• Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona

• Year
• 1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 259601

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• BF495 BF495 BF495 BF495 BF495 BC308 MC140 BC237 BC237 BC237 BC237 MC140 S1998A TBA120 TBA820 BAV54 BB105 F12 SFD107 SFD112 SZ102

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Radio with other functions

• Power type and voltage
• Alternating Current supply (AC) / 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

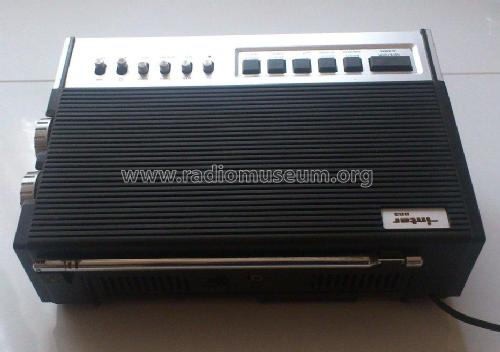

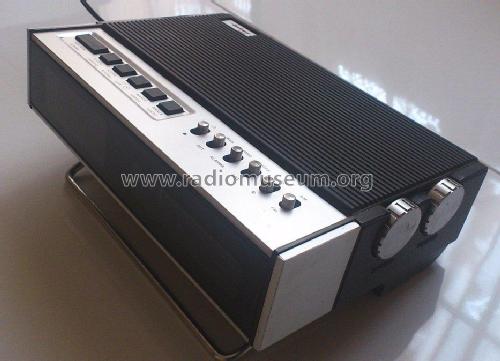

• Model: Radio Reloj RR-3 - Inter Electrónica, S.A., Inter

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Literature/Schematics (2)
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
