- Country
- Spain
- Manufacturer / Brand
- Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona
- Year
- 1976 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 323145

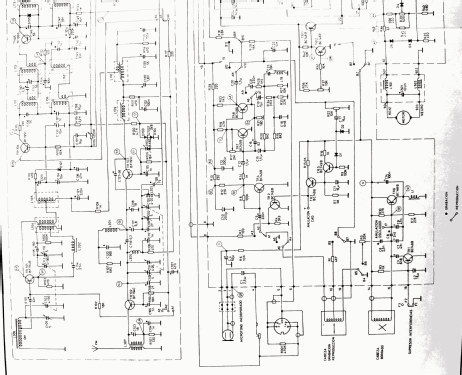

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 28
- Semiconductors
- BF194 BF195 BF195 BF195 BF197 BF194 BF195 BC149 BC149 BC149 BC149 BC149 BC148 BC148 BC148 BC148 BC148 MC150 BC148 BD135 BC148 BC148 BD136 BC148 BC148 BD136 BC159 BC148 TBA820 BA102 SZ102 SZ102
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line plus power jack, mostly with battery or storage battery / 125; 220 / 12 / 6 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: RCP-436B - Inter Electrónica, S.A., Inter
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
Inter Electrónica, S.A., Radio Cassette Portátil RCP-436B
- Literature/Schematics (1)
- -- Original-techn. papers. (Esquemario Magnetófonos y Cassettes REDE, Tomo IV, 1977)
- Author
- Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
