E-128 TRP-316-C
Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona
- Year
- 1975 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 166869

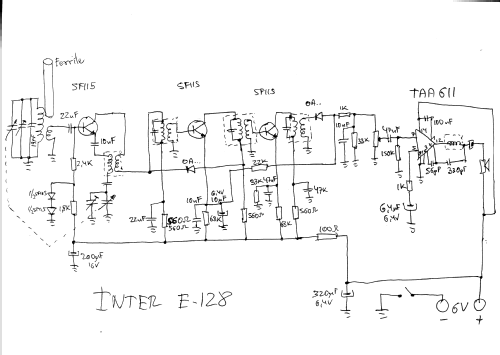

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 3
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: E-128 TRP-316-C - Inter Electrónica, S.A., Inter
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 160 x 100 x 50 mm / 6.3 x 3.9 x 2 inch
- Notes
-
Dispone de jack para auricular
- Net weight (2.2 lb = 1 kg)
- 0.376 kg / 0 lb 13.3 oz (0.828 lb)
- Author
- Model page created by Mario Vila Tella. See "Data change" for further contributors.
