- Country
- Spain
- Manufacturer / Brand
- Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona
- Year
- 1963 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 319108

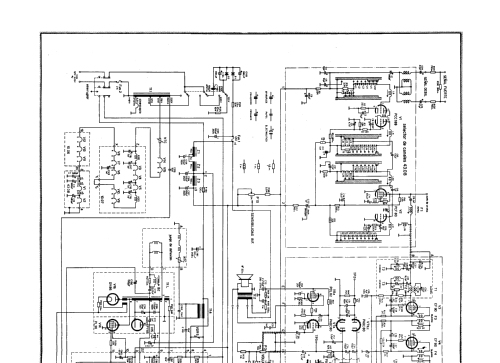

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- PCC88 PCF80 EF80 EF80 EF80 PCL84 12ET1 PCL85 PABC80 PCF80 PL36 PY81 DY86 EF80 PABC80 PCL82 AW47-91 ORP60
- Number of Transistors
- Semiconductors
- OA73
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- from Radiomuseum.org
- Model: TV-260-A - Inter Electrónica, S.A., Inter
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Inter Electrónica, S.A., TV-260-A
TV B/N 19" con selector rotativo de VHF tipo 43.08
- Mentioned in
- Esquemario TV REDE, Tomo II, 1964
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
