- Country
- Spain
- Manufacturer / Brand
- Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona
- Year
- 1963 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 315260

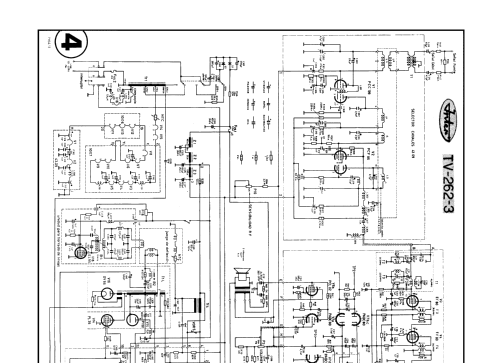

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- PCC189 PCF86 EF80 EF80 EF80 PCL84 PABC80 PCL85 PCF80 EL95 PL36 PY81 DY86 PCL82 12ET1 EF80 PABC80 AW59-91
- Number of Transistors
- Semiconductors
- OA73
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- from Radiomuseum.org
- Model: TV-262-3 - Inter Electrónica, S.A., Inter
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Inter Electrónica S.A. TV-262-3
TV B/N de 23" con selector rotativo de VHF tipo 43.09
Altavoz elíptico de 5" x 7"
- Mentioned in
- Esquemario TV REDE, Tomo I, 1964
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
