- Country
- Spain
- Manufacturer / Brand
- Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona
- Year
- 1969 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 319708

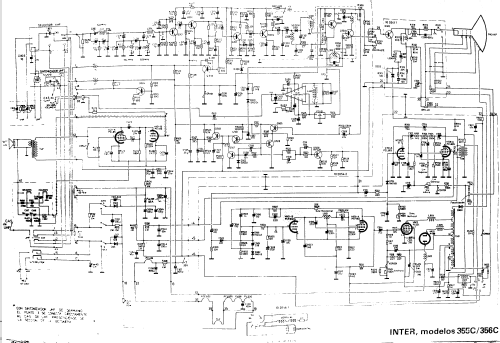

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- 14
- Semiconductors
- TBA120
- Main principle
- Superhet with RF-stage; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 1.5 W (unknown quality)
- from Radiomuseum.org
- Model: TV-355-C - Inter Electrónica, S.A., Inter
- Notes
-
Inter Electrónica, S.A., TV-355-C
TV B/N con selector rotativo de VHF y sintonizador transistorizado para UHF.
Altavoz elíptico de 5" x 7" @ 4 Ω
- Mentioned in
- Esquemario TV REDE Tomo XIII, 1977
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
