TV-418

Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona

Data
Forum
Pictures
Collections

  • Year
  • 1975 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 321706

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • 16
  • Main principle
  • Superhet with RF-stage; ZF/IF 38900 kHz
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 127; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: TV-418 - Inter Electrónica, S.A., Inter
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 410 x 290 x 240 mm / 16.1 x 11.4 x 9.4 inch
  • Notes

  • Inter Electrónica, S.A., TV-418

    TV B/N 12" con selector rotativo de VHF y sintonizador de UHF, ambos transistorizados.

    Listado un único semiconductor por tipo. Sin listar los de los sintonizadores.

    Colores: frente Negro, carcasa Blanco (Marfil) o Rojo
    Bolsa para transporte opcional

    Véase modelo posterior TV-418-C

  • Literature/Schematics (1)

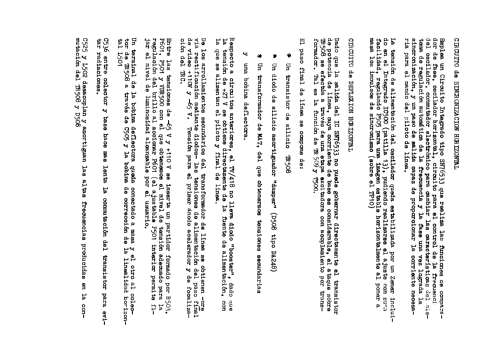

  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
