- Country
- Spain
- Manufacturer / Brand
- Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona
- Year
- 1967 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 319711

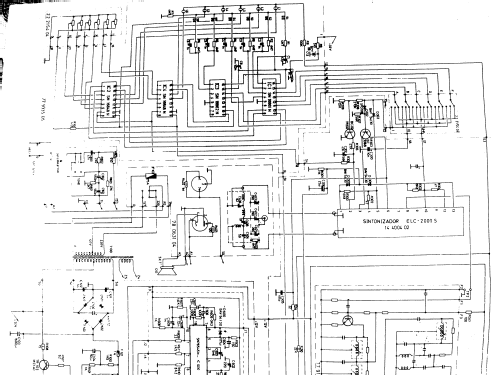

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- unknown_CRT
- Number of Transistors
- 17
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 1.5 W (unknown quality)
- from Radiomuseum.org
- Model: TV-446-D - Inter Electrónica, S.A., Inter
- Dimensions (WHD)
- 680 x 518 x 318 mm / 26.8 x 20.4 x 12.5 inch
- Notes
-
Inter Electrónica, S.A., TV-446-D
TV B/N 24" completamente transistorizado y con 8 circuitos integrados.
Sintonizador VHF/UHF Copresa ELC2000S con 6 presintonias con sensores táctiles UHF/VHF
Altavoz elíptico de 5" x 7" @ 12 Ω
- Author
- Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
