VHF Selector de Canales - Channel Selector / Tuner GSC-101
Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona
- Year
- 1958 ?
- Category
- Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
- Radiomuseum.org ID
- 319095
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Main principle
- RF Converter/Adapter (not voltage converter); ZF/IF 38900 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: VHF Selector de Canales - Channel Selector / Tuner GSC-101 - Inter Electrónica, S.A., Inter
- Shape
- Chassis only or for «building in»
- Notes
-
Inter Electrónica, S.A., GSC-101
Selector rotativo de VHF
- Mentioned in
- Esquemario TV REDE, Tomo II, 1964
- Literature/Schematics (1)

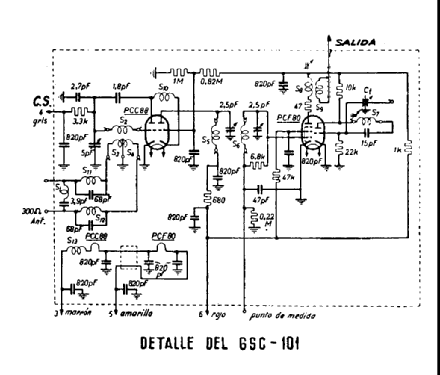

- -- Schematic
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
