• Country
• Germany

• Manufacturer / Brand
• Interfunk Warenvertrieb GmbH; Ditzingen

• Year
• 1976 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 179529

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

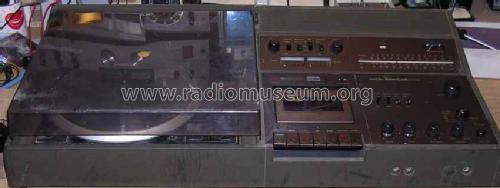

• Model: HiFi-Center KS178 - Interfunk Warenvertrieb GmbH;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 800 x 175 x 400 mm / 31.5 x 6.9 x 15.7 inch

• Notes
• HiFi-Kombination mit Radio, Kassettenrecorder und Plattenspieler.
  Phono-Chassis Dual 1236A mit System Shure M75,

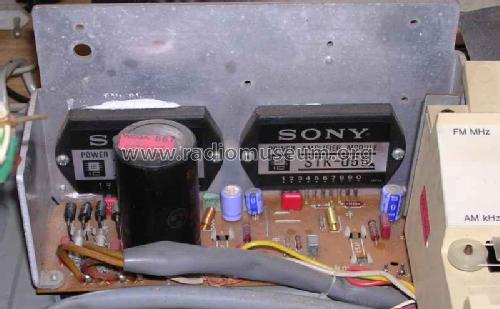

  Ausgangsleistung 2x 20W (Sinus) mit 2x Hybrid-Amplifier Sony STK 056.
  Keine Stationstasten für UKW, gleicher Kassettenrecorder wie bei Wega KS3341,
  Laufwerk vermutlich Sony, Elektronik von WEGA.

• Net weight (2.2 lb = 1 kg)
• 14.6 kg / 32 lb 2.5 oz (32.159 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Karl Reiter. See "Data change" for further contributors.
