• Country
• United States of America (USA)

• Manufacturer / Brand
• International Radio Electronics Corp. (Crown); Elkhart (IN)

• Year
• 1988

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 208992

• • Brand: Crown

• Number of Transistors
• 48

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 100; 120; 200; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 160 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

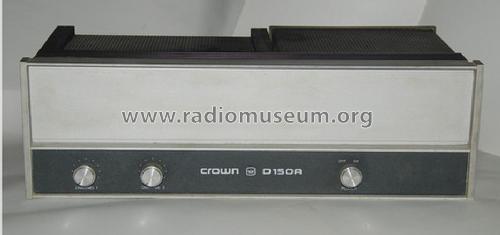

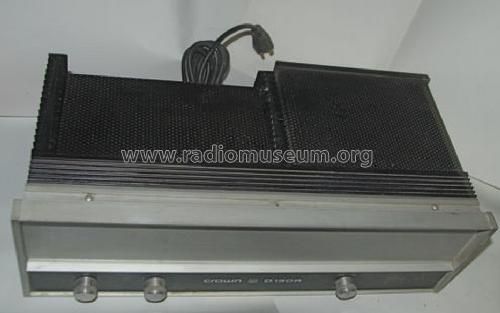

• Model: Power Ampliifer D-150A - International Radio

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 17 x 5.25 x 8.75 inch / 432 x 133 x 222 mm

• Notes
• 80 watts per channel minimum RMS (both channels operating) into an 8 ohm load over a bandwidth of 1 - 20000 Hz at a rated RMS sum total harmonic distortion of 0,05% of the fundamental output voltage.
  Satinized aluminium front panel with gray suede Lexan insert.
  22 Signal Diodes, 3 Zener Diodes, 6 Rectifier Diodes.

• Net weight (2.2 lb = 1 kg)
• 24 lb 0 oz (24 lb) / 10.896 kg

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
