A2359HU Ch= 19A20U

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1958 ?

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
324211

- alternative name: Chicago Radio Lab

Schematics

A2359HU Ch= 19A20U; Zenith Radio Corp.; (ID = 2573672) Television — Zenith Radio Corp.; A2359HU Ch= 19A20U (3)

A2359HU Ch= 19A20U; Zenith Radio Corp.; (ID = 2573673) Television — Zenith Radio Corp.; A2359HU Ch= 19A20U (3)

A2359HU Ch= 19A20U; Zenith Radio Corp.; (ID = 2573674) Television — Zenith Radio Corp.; A2359HU Ch= 19A20U (3)

A2359HU Ch= 19A20U; Zenith Radio Corp.; (ID = 2573675) Television — Zenith Radio Corp.; A2359HU Ch= 19A20U (3)

A2359HU Ch= 19A20U; Zenith Radio Corp.; (ID = 2573676) Television — Zenith Radio Corp.; A2359HU Ch= 19A20U (3)

A2359HU Ch= 19A20U; Zenith Radio Corp.; (ID = 2573677) Television — Zenith Radio Corp.; A2359HU Ch= 19A20U (3)

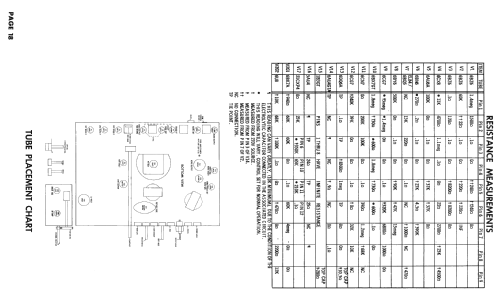

A2359HU Ch= 19A20U; Zenith Radio Corp.; (ID = 2573678) Television — Zenith Radio Corp.; A2359HU Ch= 19A20U (3)

A2359HU Ch= 19A20U; Zenith Radio Corp.; (ID = 2573679) Television — Zenith Radio Corp.; A2359HU Ch= 19A20U (3)

A2359HU Ch= 19A20U; Zenith Radio Corp.; (ID = 2573680) Television — Zenith Radio Corp.; A2359HU Ch= 19A20U (3)

A2359HU Ch= 19A20U; Zenith Radio Corp.; (ID = 2573681) Television — Zenith Radio Corp.; A2359HU Ch= 19A20U (3)

A2359HU Ch= 19A20U; Zenith Radio Corp.; (ID = 2573682) Television — Zenith Radio Corp.; A2359HU Ch= 19A20U (3)

A2359HU Ch= 19A20U; Zenith Radio Corp.; (ID = 2573683) Television — Zenith Radio Corp.; A2359HU Ch= 19A20U (3)

A2359HU Ch= 19A20U; Zenith Radio Corp.; (ID = 2573684) Television — Zenith Radio Corp.; A2359HU Ch= 19A20U (3)

A2359HU Ch= 19A20U; Zenith Radio Corp.; (ID = 2573686) Television — Zenith Radio Corp.; A2359HU Ch= 19A20U (3)

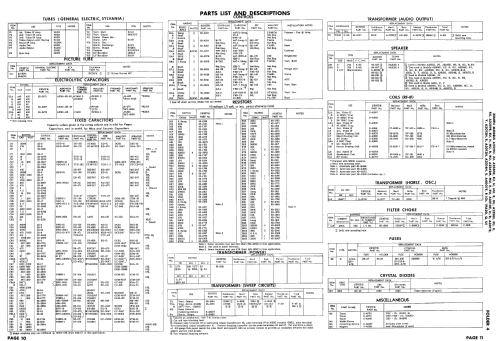

A2359HU Ch= 19A20U; Zenith Radio Corp.; (ID = 2573687) Television — Zenith Radio Corp.; A2359HU Ch= 19A20U (3)

A2359HU Ch= 19A20U; Zenith Radio Corp.; (ID = 2573688) Television — Zenith Radio Corp.; A2359HU Ch= 19A20U (3)

A2359HU Ch= 19A20U; Zenith Radio Corp.; (ID = 2573689) Television — Zenith Radio Corp.; A2359HU Ch= 19A20U (3)

A2359HU Ch= 19A20U; Zenith Radio Corp.; (ID = 2785778) Television — Zenith Radio Corp.; A2359HU Ch= 19A20U (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
20

Valves / Tubes
6AF4 6BK7A 6U8 6BZ6 6BZ6 6BZ6 6CX8 6AU6A 6BN6 EL84 or 6BQ5 6BY6 6CG7 6BX7GT 6CN7 6CG7 6DQ6A 6AU4GTA 1B3GT 5AU4 21CXP4

Main principle
Superhet with RF-stage

Wave bands
Wave Bands given in the notes.

Power type and voltage
Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

Loudspeaker
2 Loudspeakers

Material
Wooden case

from Radiomuseum.org
Model: A2359HU Ch= 19A20U - Zenith Radio Corp.; Chicago,

Shape
Tablemodel, with any shape - general.

Notes
Zenith model A2359HU is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with chassis 19A20U, VHF- tuner S-41712, UHF- tuner S-41945 and picture tube 21CXP4.

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 394 folder 4 dated 4-58)

Author
Model page created by Dirk Taekels. See "Data change" for further contributors.
