2-Band Portable Radio TR-17
Intersound (brand)
- Country
- Switzerland
- Manufacturer / Brand
- Intersound (brand)
- Year
- 1986 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 356394
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / AA: 3 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 2-Band Portable Radio TR-17 - Intersound brand
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 70 x 140 x 32 mm / 2.8 x 5.5 x 1.3 inch
- Notes
-

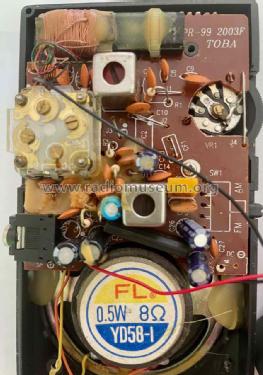

Portable 2-Band Radio, Teleskopantenne für UKW, Kopfhöreranschluß, IC-Technik
- Net weight (2.2 lb = 1 kg)
- 0.250 kg / 0 lb 8.8 oz (0.551 lb)
- Author
- Model page created by Wolfgang Lill. See "Data change" for further contributors.
