• Country
• Spain

• Manufacturer / Brand
• Invicta Radio, Barcelona

• Year
• 1959 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 155588

• • alternative name: Establecimientos Lucarda || Radio Lucarda, S.L

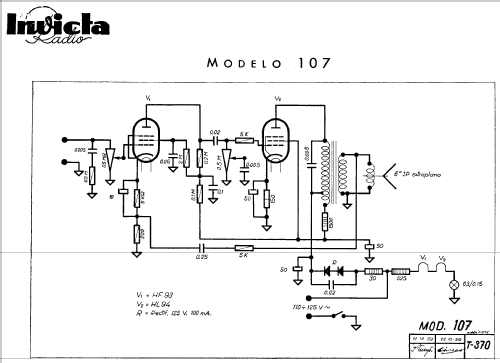

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• HF93 HL94

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• 110-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• from Radiomuseum.org
• Model: 107 - Invicta Radio, Barcelona

• Source of data
• -- Schematic

• Author
• Model page created by Marcelino Iniesta Fernandez. See "Data change" for further contributors.

• Other Models

• Here you find 242 models, 198 with images and 109 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Invicta Radio, Barcelona
