• Country
• Great Britain (UK)

• Manufacturer / Brand
• Invicta Radio Ltd.; Cambridge, London

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 201024

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• VP2B_Mullard PM2HL PM22A

• Main principle
• TRF with regeneration

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 2 & 9 & 120 or 150 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: 340 - Invicta Radio Ltd.; Cambridge,

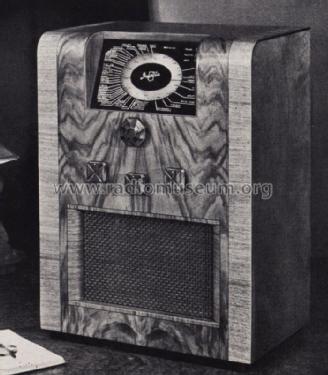

• Shape
• Tablemodel, with any shape - general.

• Literature/Schematics (1)
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (245)

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
