- Country
- Great Britain (UK)
- Manufacturer / Brand
- Invicta Radio Ltd.; Cambridge, London
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 80338

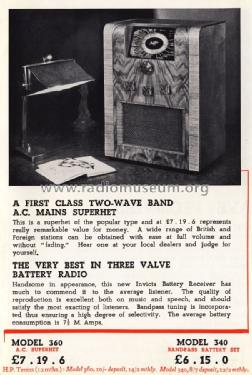

Original Prospekt, Datums Code 8/37

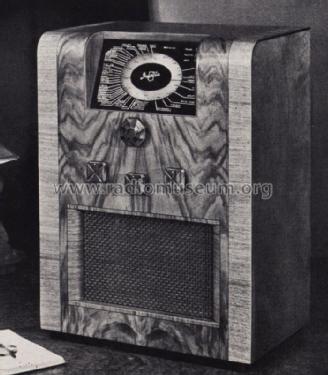

Original Prospekt, Datums Code 8/37
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 14 cm = 5.5 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 360 - Invicta Radio Ltd.; Cambridge,
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 350 x 450 x 230 mm / 13.8 x 17.7 x 9.1 inch
- Literature/Schematics (1)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (271)
- Author
- Model page created by Jürgen Führer. See "Data change" for further contributors.
