• Country
• Spain

• Manufacturer / Brand
• Invicta Radio, Barcelona

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94571

• • alternative name: Establecimientos Lucarda || Radio Lucarda, S.L

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6 35Z5

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm

• Material
• Wooden case

• from Radiomuseum.org

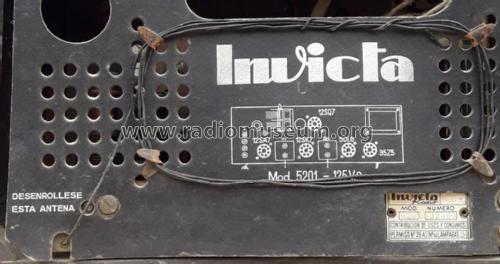

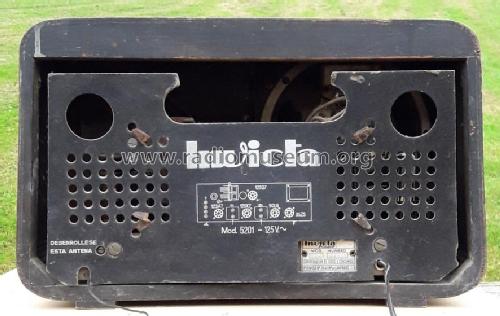

• Model: Atlanta 5201 - Invicta Radio, Barcelona

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 375 x 230 x 185 mm / 14.8 x 9.1 x 7.3 inch

• Notes

• Invicta Atlanta 5201

• Source of data
• -- Original-techn. papers.

• Mentioned in
• Periódico Nueva España (Aragón) febrero 1951

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
