• Country
• Spain

• Manufacturer / Brand
• Invicta Radio, Barcelona

• Year
• 1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 187715

• • alternative name: Establecimientos Lucarda || Radio Lucarda, S.L

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UF41 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 110-130 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

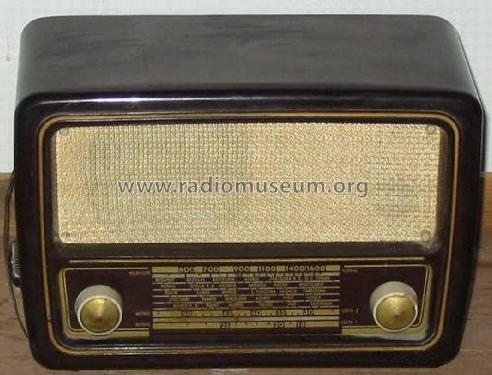

• Model: Niza 5322 - Invicta Radio, Barcelona

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• Serie "Sonido en Relieve 3D"

• Price in first year of sale
• 1,890.00 ESP

• Source of data
• -- Original-techn. papers.

• Mentioned in
• Anuncio La Vanguardia Española octubre 1956

• Author
• Model page created by Marcelino Iniesta Fernandez. See "Data change" for further contributors.

• Other Models

• Here you find 242 models, 198 with images and 109 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
