- Country
- Spain
- Manufacturer / Brand
- Invicta Radio, Barcelona
- Year
- 1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 215297
-
- alternative name: Establecimientos Lucarda || Radio Lucarda, S.L
Anuncio La Vanguardia Española octubre 1961
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- AC/DC-set / 110/220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 3 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org

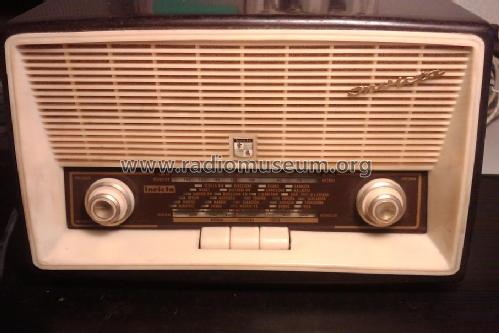

- Model: 5365 - Invicta Radio, Barcelona
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 310 x 200 x 140 mm / 12.2 x 7.9 x 5.5 inch
- Net weight (2.2 lb = 1 kg)
- 4 kg / 8 lb 13 oz (8.811 lb)
- Price in first year of sale
- 2,200.00 ESP
- Mentioned in
- Anuncio La Vanguardia Española octubre 1961
- Author
- Model page created by Juan Garcia-Garcia. See "Data change" for further contributors.
