- Country
- Spain
- Manufacturer / Brand
- Invicta Radio, Barcelona
- Year
- 1961 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 191825
-
- alternative name: Establecimientos Lucarda || Radio Lucarda, S.L
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- AC/DC-set / 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org

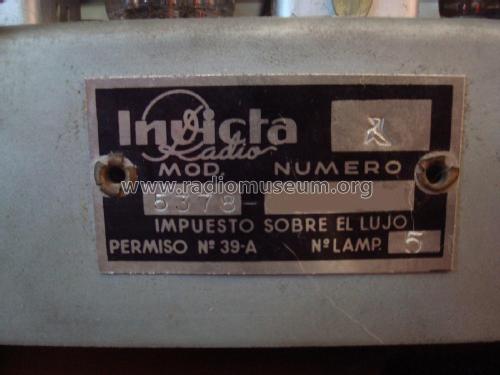

- Model: 5378 - Invicta Radio, Barcelona
- Shape
- Tablemodel with Push Buttons.
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Antonio Abeledo Castro. See "Data change" for further contributors.
