• Country
• Spain

• Manufacturer / Brand
• Invicta Radio, Barcelona

• Year
• 1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62482

• • alternative name: Establecimientos Lucarda || Radio Lucarda, S.L

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

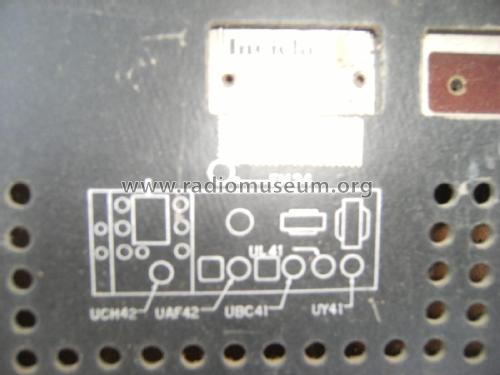

• UCH42 UAF42 UBC41 UL41 UM34 UY41

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 95; 115; 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

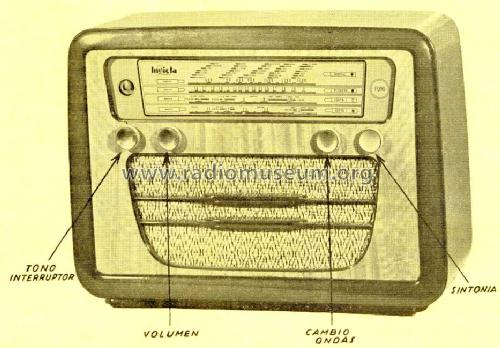

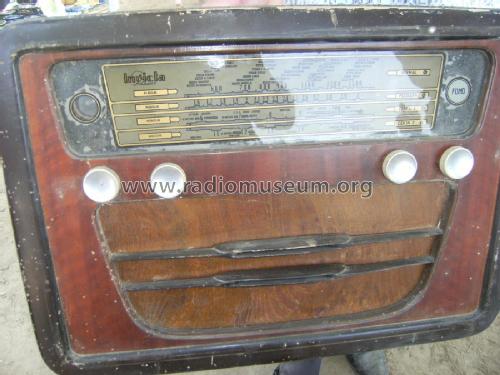

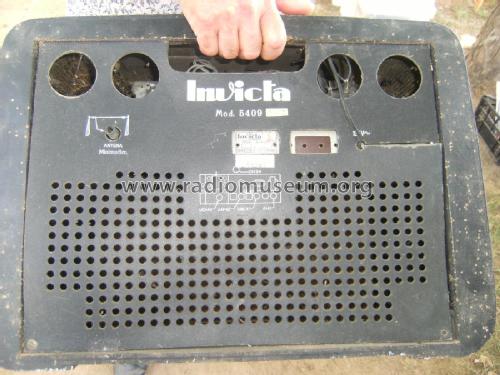

• Model: 5409 - Invicta Radio, Barcelona

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 520 x 370 x 200 mm / 20.5 x 14.6 x 7.9 inch

• Price in first year of sale
• 3,290.00 ESP

• External source of data
• Ernst Erb

• Source of data
• Radio Historia y Técnica, J.J.E.

• Mentioned in
• -- Original prospect or advert
