- Country
- Spain
- Manufacturer / Brand
- Invicta Radio, Barcelona
- Year
- 1954 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 187969
-
- alternative name: Establecimientos Lucarda || Radio Lucarda, S.L

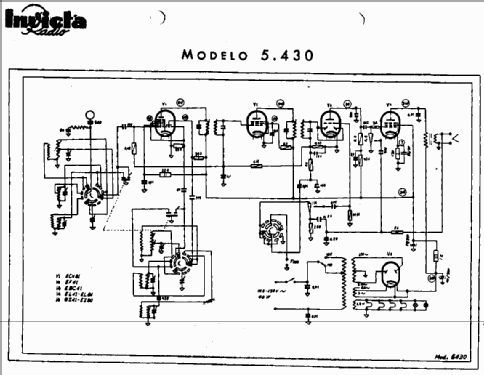

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Power type and voltage
- Alternating Current supply (AC) / 110; 130 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: 5430 - Invicta Radio, Barcelona
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Marcelino Iniesta Fernandez. See "Data change" for further contributors.
