• Year
  • 1965 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 339463
    • alternative name: Establecimientos Lucarda || Radio Lucarda, S.L

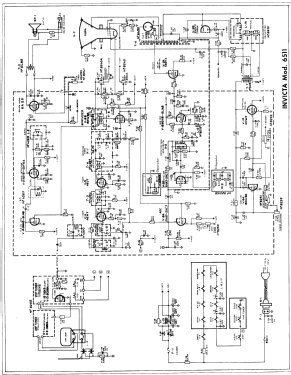

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 13
  • Number of Transistors
  • 1
  • Main principle
  • Superhet with RF-stage; 1 AF stage(s)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • from Radiomuseum.org
  • Model: 6511 - Invicta Radio, Barcelona
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • Invicta, S.A., 6511

    TV B/N 11" con selector rotativo de VHF y sintonizador de UHF
    Altavoz elíptico de 3" x 5"



  • Mentioned in
  • Esquemario TV REDE, Tomo III, 1967
  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
