- Country
- Great Britain (UK)
- Manufacturer / Brand
- Invicta Radio Ltd.; Cambridge, London
- Year
- 1965 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 176218
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 4
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 3 AF stage(s); Reflex
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: 8018 - Invicta Radio Ltd.; Cambridge,
- Shape
- Chassis only or for «building in»
- Notes
- IF amp also provides AF amplification in reflex mode.
- Source of data
- -- Schematic
- Circuit diagram reference

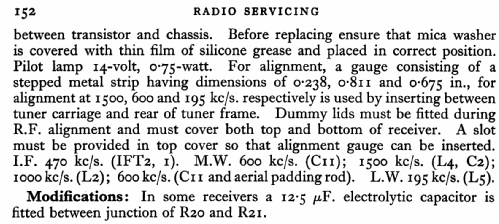

- Radio and TV Servicing books (R&TVS) book
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
