• Country
• Spain

• Manufacturer / Brand
• Invicta Radio, Barcelona

• Year
• 1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 155936

• • alternative name: Establecimientos Lucarda || Radio Lucarda, S.L

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECH81 EBF80 ECH81 EL84 EM80 EL84 EZ80 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 100; 125; 150 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

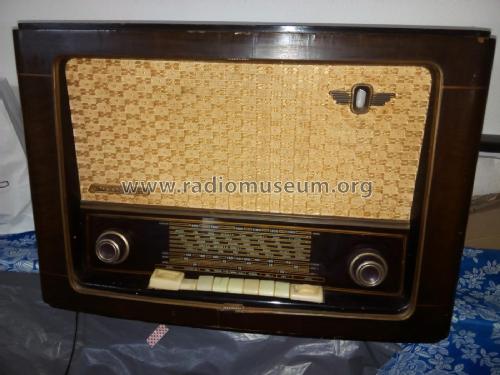

• Model: Biarritz 8452 - Invicta Radio, Barcelona

• Shape
• Tablemodel with Push Buttons.

• Notes

• Invicta Radio (Establecimientos Lucarda), receptor 8452

  Onda Normal (OM) seleccionable antena interior o exterior, OC1, OC2 y Banda Pesquera

  Tiene 3 altavoces: uno de 8" para graves y uno de 5" para medios conectados al mismo transformador, y un altavoz para los agudos de 3" con otro transformador independiente del anterior.

• Price in first year of sale
• 4,900.00 ESP

• Source of data
• -- Schematic

• Mentioned in
• Anuncio La Vanguardia Española octubre 1956

• Author
• Model page created by Marcelino Iniesta Fernandez. See "Data change" for further contributors.

• Other Models

• Here you find 242 models, 198 with images and 109 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Invicta Radio, Barcelona
