Talero 9475-FM

Invicta Radio, Barcelona

  • Year
  • 1959–1961
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 155944
    • alternative name: Establecimientos Lucarda || Radio Lucarda, S.L

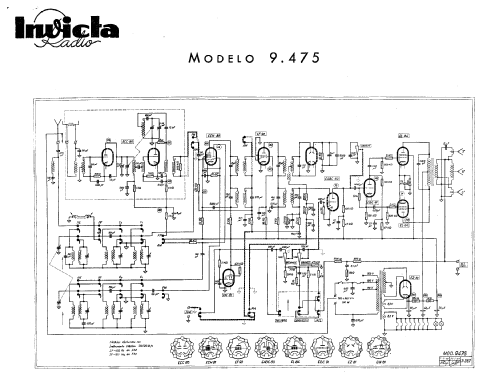

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 150; 220 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Talero 9475-FM - Invicta Radio, Barcelona
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 620 x 390 x 240 mm / 24.4 x 15.4 x 9.4 inch
  • Notes
  • Lleva tres altavoces, uno de 210 mm para graves,uno de 140 mm para medios y uno de 75 mm para agudos

  • Price in first year of sale
  • 5,915.00 ESP
  • Source of data
  • -- Original prospect or advert
  • Mentioned in
  • Anuncio La Vanguardia Española octubre 1959
  • Literature/Schematics (1)
  • -- Schematic
