• Country
• Spain

• Manufacturer / Brand
• Invicta Radio, Barcelona

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 152507

• • alternative name: Establecimientos Lucarda || Radio Lucarda, S.L

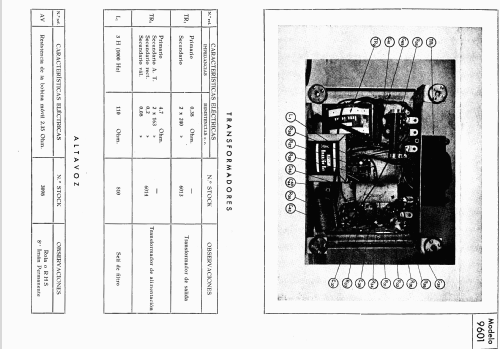

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• EF39 ECH35 EF39 EBC33 6E5 EBC33 EL33 EL33 AZ31

• Main principle
• Superhet with RF-stage; ZF/IF 470 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• from Radiomuseum.org
• Model: New York 9601 - Invicta Radio, Barcelona

• Shape
• Tablemodel, low profile (big size).

• Notes

• La onda media va dividida en dos bandas, que anuncia como "Onda Normal Ensanchada", que cubren de 550 a 1000 kHz y de 950 a 1850 kHz.

• Price in first year of sale
• 4,800.00 ESP

• Mentioned in
• Anuncio La Vanguardia Española febrero 1951

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Marcelino Iniesta Fernandez. See "Data change" for further contributors.

• Other Models

• Here you find 242 models, 198 with images and 109 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
