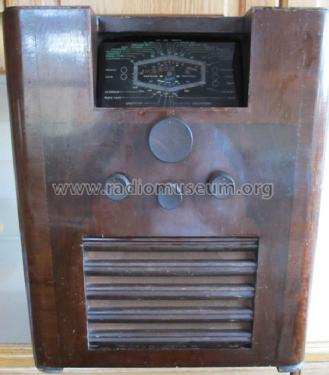

Battery All Wave Superhet B49
Invicta Radio Ltd.; Cambridge, London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Invicta Radio Ltd.; Cambridge, London
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 251785
- Number of Tubes
- 4
- Valves / Tubes
- FC2A VP2B_Mullard TDD2A PM22A
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Storage and/or dry batteries / 2 & 9 & 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Battery All Wave Superhet B49 - Invicta Radio Ltd.; Cambridge,
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 410 x 495 x 260 mm / 16.1 x 19.5 x 10.2 inch
- Notes
-
The B39 is a similar 3 band version (January 1939, different cabinet). The U49 is AC/DC version and A49 is AC mains only version (all are same case and scale but different chassis).
LT: 2V Lead Acid Accumulator.
Price excluded batteries.
- Price in first year of sale
- 9.85 GBP
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by Michael Watterson. See "Data change" for further contributors.
