- Country
- Great Britain (UK)
- Manufacturer / Brand
- Invicta Radio Ltd.; Cambridge, London
- Year
- 1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 88353

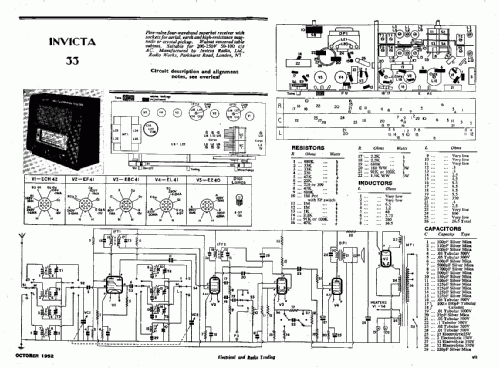

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 420 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 33 - Invicta Radio Ltd.; Cambridge,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 16 x 14.5 x 5.5 inch / 406 x 368 x 140 mm
- Mentioned in
- Service Charts of Electrical and Radio Trading
- Literature/Schematics (1)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1093)
- Author
- Model page created by Mario Coelho. See "Data change" for further contributors.
