- Country
- Great Britain (UK)
- Manufacturer / Brand
- Invicta Radio Ltd.; Cambridge, London
- Year
- 1951
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 198946
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- EF80 EF80 EF80 EF80 EF80 EB91 EF80 EF80 PL38 EY51 PY31 EF80 EF80 EB91 ECL80 EB91 ECL80 MW31-16
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- AC/DC-set / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: T112 - Invicta Radio Ltd.; Cambridge,
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
- 12 inch 405 line b/w table TV set with a 5 channel GB band I VHF tuner.
- Literature/Schematics (1)

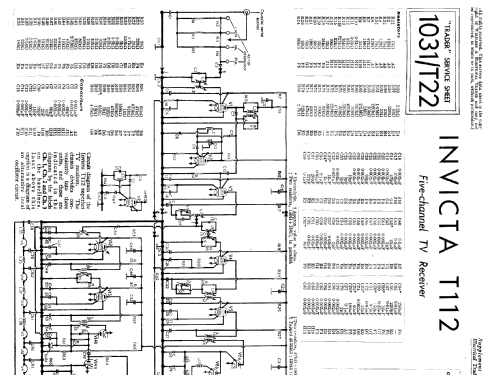

- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1031/T22)
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
