- Country
- Great Britain (UK)
- Manufacturer / Brand
- Invicta Radio Ltd.; Cambridge, London
- Year
- 1939 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 204373
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 1 AF stage(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- 210 -240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

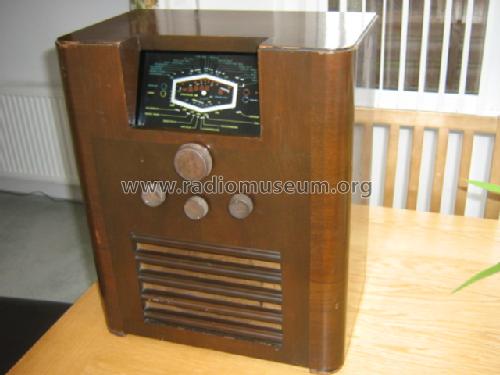

- Model: U49/660 - Invicta Radio Ltd.; Cambridge,
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 410 x 495 x 260 mm / 16.1 x 19.5 x 10.2 inch
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Roger Ashley. See "Data change" for further contributors.
