• Country
• Spain

• Manufacturer / Brand
• Invicta Radio, Barcelona

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 207095

• • alternative name: Establecimientos Lucarda || Radio Lucarda, S.L

• Number of Tubes
• 3

• Valves / Tubes

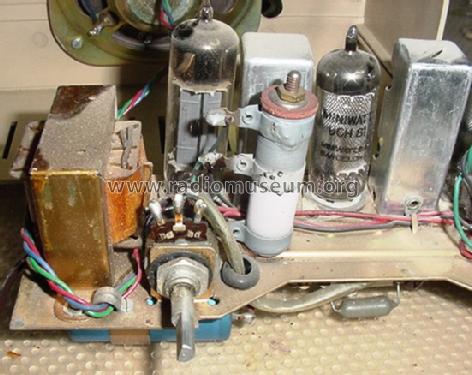

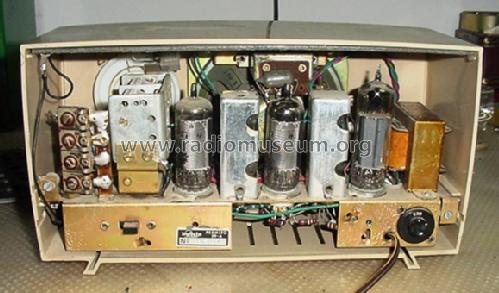

• UCH81 UCH81 UL84

• Number of Transistors

• Semiconductors
• Selenium-Rectifier

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 125/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

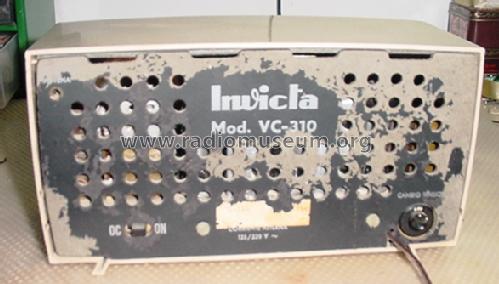

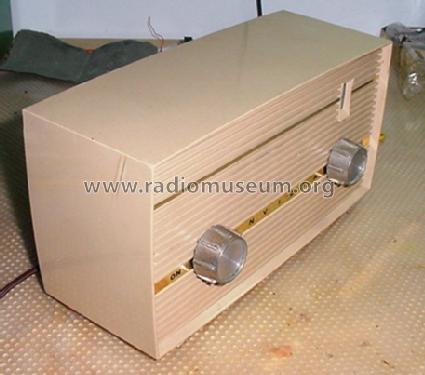

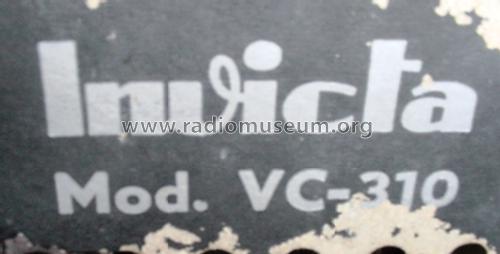

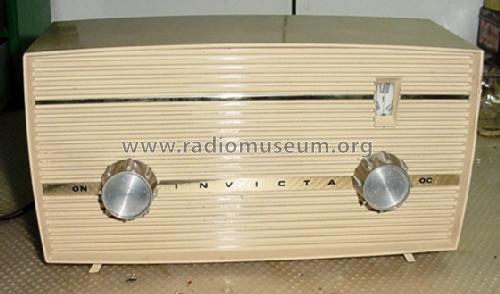

• Model: VC310 - Invicta Radio, Barcelona

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 240 x 130 x 100 mm / 9.4 x 5.1 x 3.9 inch

• Notes
• Detector por diodo de cristal.

• Source of data
• - - Data from my own collection

• Author
• Model page created by Salvador Saura-Lopez. See "Data change" for further contributors.
