Altoparlante C16-30
IREL - Industrie Radio Elettriche Liguri, Genova
- Country
- Italy
- Manufacturer / Brand
- IREL - Industrie Radio Elettriche Liguri, Genova
- Year
- 1973 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 358103
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15.3 cm = 6 inch
- Power out
- 2 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Altoparlante C16-30 - IREL - Industrie Radio
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 165 x 165 x 68 mm / 6.5 x 6.5 x 2.7 inch
- Notes
-

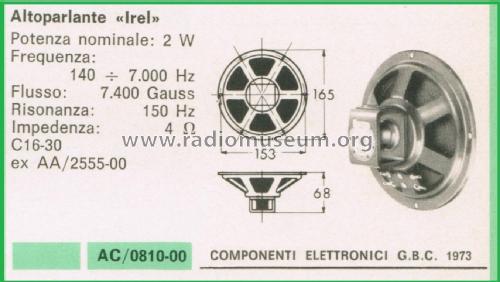

Caratteristiche:
- Risposta in Frequenza: 140 ÷ 7.000 Hz
- Flusso: 7.400 Gauss
- Risonanza: 150 Hz
- Impedenza: 4 Ω
Numero di catalogo GBC: AC/0810-00.
- Mentioned in
- -- Original prospect or advert (GBC Componenti Elettronici, edizione 1973.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
