Rekord {Рекорд} 53 Radiogramophone

Irkutsk Radio Works

Data

Forum

Pictures

Collections

Country
Soviet Union

Manufacturer / Brand
Irkutsk Radio Works

Year
1954

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
78140

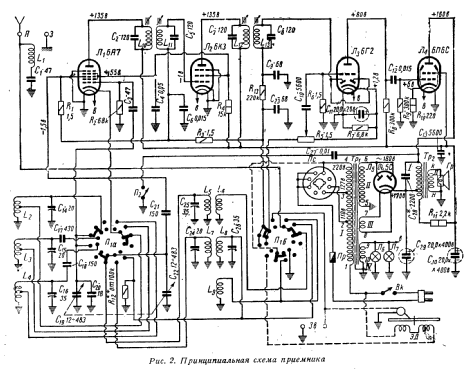

Schematics

Rekord {Рекорд} 53; Irkutsk Radio Works (ID = 181216) Radio — Irkutsk Radio Works Rekord {Рекорд} 53 (3)

Rekord {Рекорд} 53; Irkutsk Radio Works (ID = 2248181) Radio — Irkutsk Radio Works Rekord {Рекорд} 53 (1)

Rekord {Рекорд} 53; Irkutsk Radio Works (ID = 2248180) Radio — Irkutsk Radio Works Rekord {Рекорд} 53 (1)

Rekord {Рекорд} 53; Irkutsk Radio Works (ID = 2248182) Radio — Irkutsk Radio Works Rekord {Рекорд} 53 (1)

Rekord {Рекорд} 53; Irkutsk Radio Works (ID = 2248183) Radio — Irkutsk Radio Works Rekord {Рекорд} 53 (1)

Rekord {Рекорд} 53; Irkutsk Radio Works (ID = 181207) Radio — Irkutsk Radio Works Rekord {Рекорд} 53 (1)
Kaunas Lithuania

Rekord {Рекорд} 53; Irkutsk Radio Works (ID = 181212) Radio — Irkutsk Radio Works Rekord {Рекорд} 53 (1)
Kaunas Lithuania

Rekord {Рекорд} 53; Irkutsk Radio Works (ID = 181214) Radio — Irkutsk Radio Works Rekord {Рекорд} 53 (1)
Kaunas Lithuania

Rekord {Рекорд} 53; Irkutsk Radio Works (ID = 181209) Radio — Irkutsk Radio Works Rekord {Рекорд} 53 (1)
Kaunas Lithuania

Rekord {Рекорд} 53; Irkutsk Radio Works (ID = 181210) Radio — Irkutsk Radio Works Rekord {Рекорд} 53 (1)
Kaunas Lithuania

Rekord {Рекорд} 53; Irkutsk Radio Works (ID = 181211) Radio — Irkutsk Radio Works Rekord {Рекорд} 53 (1)
Kaunas Lithuania

Rekord {Рекорд} 53; Irkutsk Radio Works (ID = 181213) Radio — Irkutsk Radio Works Rekord {Рекорд} 53 (1)
Kaunas Lithuania

Rekord {Рекорд} 53; Irkutsk Radio Works (ID = 1437060) Radio — Irkutsk Radio Works Rekord {Рекорд} 53 (1)

Rekord {Рекорд} 53; Irkutsk Radio Works (ID = 1437061) Radio — Irkutsk Radio Works Rekord {Рекорд} 53 (1)

Rekord {Рекорд} 53; Irkutsk Radio Works (ID = 1437062) Radio — Irkutsk Radio Works Rekord {Рекорд} 53 (1)

Rekord {Рекорд} 53; Irkutsk Radio Works (ID = 1437064) Radio — Irkutsk Radio Works Rekord {Рекорд} 53 (1)

Rekord {Рекорд} 53; Irkutsk Radio Works (ID = 1437066) Radio — Irkutsk Radio Works Rekord {Рекорд} 53 (1)

Rekord {Рекорд} 53; Irkutsk Radio Works (ID = 1437067) Radio — Irkutsk Radio Works Rekord {Рекорд} 53 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
6А7 6К3 6Г2 6П6С 6Ц5С

Main principle
Superheterodyne (common); ZF/IF 465 kHz

Tuned circuits
2 AM circuit(s)

Wave bands
Broadcast, Long Wave and Short Wave.

Details
Record Player (perh.Changer)

Power type and voltage
Alternating Current supply (AC) / 110, 127, 220 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Power out
0.5 W (unknown quality)

Material
Wooden case

from Radiomuseum.org
Model: Rekord {Рекорд} 53 [Radiogramophone] - Irkutsk Radio Works

Shape
Tablemodel, low profile (big size).

Dimensions (WHD)
480 x 317 x 310 mm / 18.9 x 12.5 x 12.2 inch

Notes

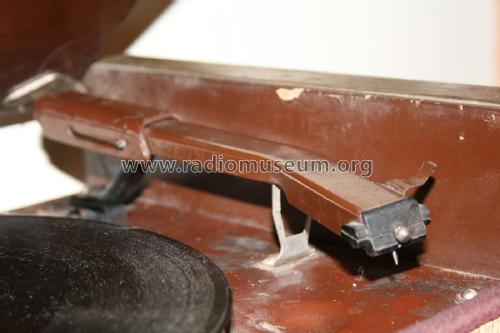

Record player for 33 and 78 rpm. This radiogramophone was manufactured in Berdsk Radio Works (SU) too (see Berdsk) - only the picture (emblem) on the glass scale is different.

Net weight (2.2 lb = 1 kg)
15.5 kg / 34 lb 2.3 oz (34.141 lb)

Mentioned in
E.A.Levitin "Spravocnik po radiovecsiatelnym prijomnikam" Moscow 1960

Author
Model page created by Zenonas Langaitis. See "Data change" for further contributors.
