Penta EF13

Iron-Radio, Ing. Galoda a Spol; Brno-Zidenice

Data

Forum

Pictures

Collections

Country
Czechoslovakia

Manufacturer / Brand
Iron-Radio, Ing. Galoda a Spol; Brno-Zidenice

Year
1942/1943

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
25504

Schematics

Penta ; Iron-Radio, Ing. (ID = 19656) Radio — Iron-Radio, Ing. Penta (3)

Penta ; Iron-Radio, Ing. (ID = 19657) Radio — Iron-Radio, Ing. Penta (3)

Penta ; Iron-Radio, Ing. (ID = 1850270) Radio — Iron-Radio, Ing. Penta (2)
eBay-Artikelnummer: 321784576382

Penta ; Iron-Radio, Ing. (ID = 582054) Radio — Iron-Radio, Ing. Penta (2)

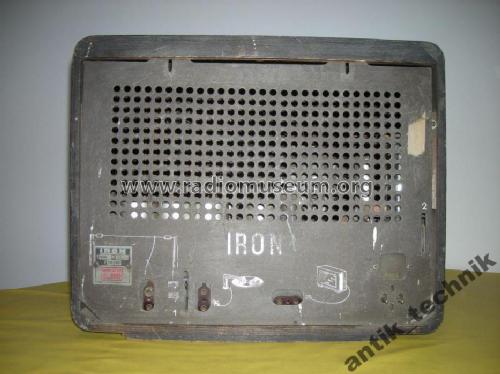

Penta ; Iron-Radio, Ing. (ID = 582055) Radio — Iron-Radio, Ing. Penta (2)

Penta ; Iron-Radio, Ing. (ID = 1005649) Radio — Iron-Radio, Ing. Penta (1)

Penta ; Iron-Radio, Ing. (ID = 582053) Radio — Iron-Radio, Ing. Penta (2)

Penta ; Iron-Radio, Ing. (ID = 2503204) Radio — Iron-Radio, Ing. Penta (1)

Penta ; Iron-Radio, Ing. (ID = 2503206) Radio — Iron-Radio, Ing. Penta (1)

Penta ; Iron-Radio, Ing. (ID = 2503207) Radio — Iron-Radio, Ing. Penta (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
7

Valves / Tubes
EF13 ECH11 EBF11 EF11 EM4 EL11 AZ11

Main principle
Superhet with RF-stage

Tuned circuits
7 AM circuit(s)

Wave bands
Broadcast, Long Wave and 2 x Short Wave.

Power type and voltage
Alternating Current supply (AC) / 120-220 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Wooden case

from Radiomuseum.org
Model: Penta [EF13] - Iron-Radio, Ing. Galoda a Spol

Source of data
Ceskoslovenske prijimace 1933-1945, Baudys 1947

Other Models
Here you find 45 models, 25 with images and 28 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Iron-Radio, Ing. Galoda a Spol; Brno-Zidenice
