9200 MW/UKW

Irradio; Milano

Data
Forum
Pictures
Collections

  • Year
  • 1975 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 255409

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 5 AM circuit(s)     8 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 220/240 / UM-2: 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
  • Power out
  • 0.5 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 9200 MW/UKW - Irradio; Milano
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 240 x 140 x 55 mm / 9.4 x 5.5 x 2.2 inch
  • Notes

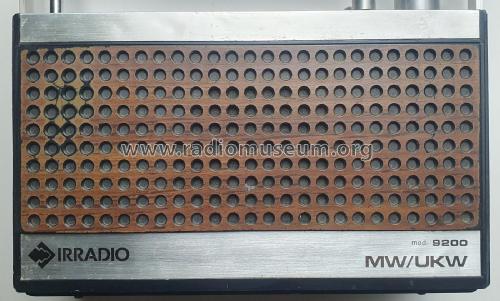

  • Radio portatile con finitura frontale in finto legno.
    Dotata di antenna telescopica per UKW (FM), in ferrite per MW (AM), presa per auricolare.
    Alimentazione da rete o con 4 pile da 1,5 V (mezze torce).

    On the top, retractable telescopic antenna, knobs for on/off-volume, for tone and for tuning; on the left side, sockets for power supply, pitch 5 mm, and for earphone; rear side, wave band switch; bottom side, access to the battery compartment.
    Ferrite antenna 8 cm, speaker with the writing: 8 Ω MUS 0.5 W foster.
    Rigid handle, with full excursion.

    See also the similar models Skyton De Luxe TR-200 and Ulm KR-229

  • Net weight (2.2 lb = 1 kg)
  • 1.1 kg / 2 lb 6.8 oz (2.423 lb)

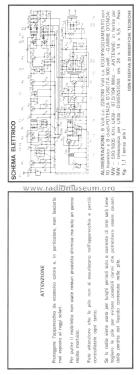

  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Manuel Cerfeda. See "Data change" for further contributors.
