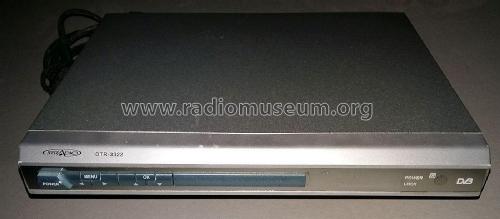

Digital Terrestrial Receiver DTR-3322
Irradio; Milano
- Country
- Italy
- Manufacturer / Brand
- Irradio; Milano
- Year
- 2008
- Category
- Digital terrestrial, Internet and SAT receiver (also analogue)
- Radiomuseum.org ID
- 340935
Telecomando per tutte le funzioni.

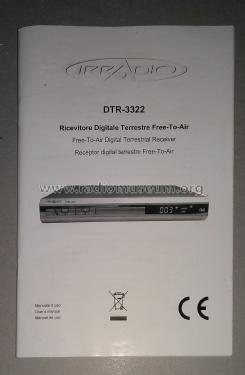

Manuale d'uso.
- Number of Transistors
- 16
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 50-60 Hz: 90-240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Digital Terrestrial Receiver DTR-3322 - Irradio; Milano
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 260 x 45 x 200 mm / 10.2 x 1.8 x 7.9 inch
- Notes
-
Ricevitore per Digitale Terrestre. Frequenza di lavoro da 51 a 858 MHz.
Demodulazione COFDM: 2K e 8K.
Decodifica video: Compatibile MPEG2, compatibile con standard NTSC/SECAM/PAL.
Decodifica audio: MPEG2 Layer I & II.
Connessione A/V: TV Scart. Uscita RF: UHF canali 21-69.16 transistor, 6 IC, 8 Diodi e 6 Diodi Raddrizzatori.
Made in China
- Mentioned in
- -- Original-techn. papers. (Manuale d'uso originale.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
