• Country
• Italy

• Manufacturer / Brand
• Irradio; Milano

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 88781

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6K7 6L7 6K7 6B6 EM4 6L6 6C5 5X4

• Main principle
• Superheterodyne (common); ZF/IF 450 kHz; 2 AF stage(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 10 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

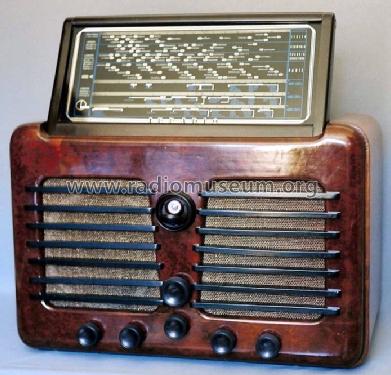

• Model: DX818 - Irradio; Milano

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 640 x 420 x 380 mm / 25.2 x 16.5 x 15 inch

• Notes
• Scala parlante reclinabile.
  OC1: 13,8 - 22,4 metri. OC2: 21,8 - 34,8 metri. OC3: 24,0 - 54,0 metri.

• Source of data
• Guida Pratica Antique Radio V (2003)

• Mentioned in
• Il Radio Libro, (Ravalico) 8.Ed.

• Literature/Schematics (1)
• Riparazioni - Scuola Radio Elettra

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
