• Country
• Italy

• Manufacturer / Brand
• Irradio; Milano

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 149494

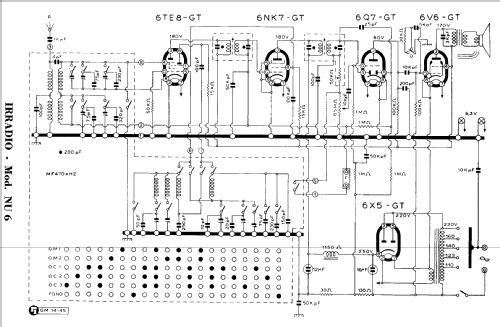

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6TE8 6NK7 6Q7 6V6 6X5

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 11 cm = 4.3 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: NU6 - Irradio; Milano

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 310 x 155 x 130 mm / 12.2 x 6.1 x 5.1 inch

• Notes
• 2 gamme onde medie, 3 onde corte.

• Net weight (2.2 lb = 1 kg)
• 3.6 kg / 7 lb 14.9 oz (7.93 lb)

• Source of data
• Guida Pratica Antique Radio V (2003)

• Mentioned in
• - - Data from my own collection

• Author
• Model page created by Federico Valdameri † 7.2015. See "Data change" for further contributors.
