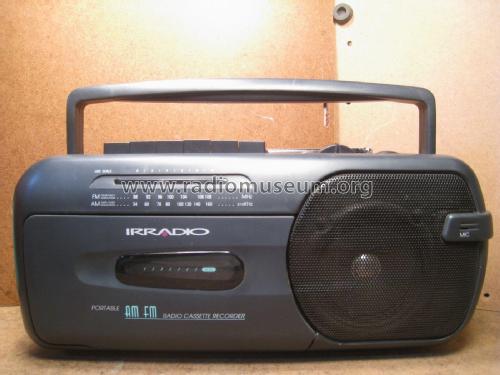

Portable AM/FM Radio Cassette Recorder CR-43
Irradio; Milano
- Country
- Italy
- Manufacturer / Brand
- Irradio; Milano
- Year
- 1990 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 290581
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage

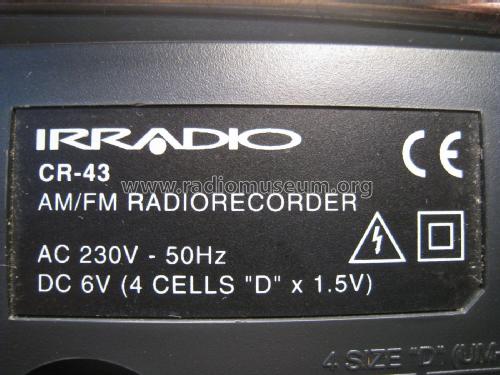

- Line / Batteries (any type) / 220 AC - 4 x 1,5 DC Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Power out
- 1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Portable AM/FM Radio Cassette Recorder CR-43 - Irradio; Milano
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 295 x 125 x 80 mm / 11.6 x 4.9 x 3.1 inch
- Notes
-
IRRADIO Portable AM/FM Radio Cassette Recorder mod. CR-43 - controllo volume - maniglia di trasporto - antenna telescopica interna per FM - antenna in ferrite interna per AM - uscita per cuffia - selettore AM/FM - selettore (radio off) Tape/Radio - microfono incorporato - tasti play/pause/stop-eject/ff.ww./rew/record.
- Net weight (2.2 lb = 1 kg)
- 1.250 kg / 2 lb 12.1 oz (2.753 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
