Digimer 1 (I)

Iskra; Kranj, Ljubljana

Data
Forum
Pictures
Collections

  • Year
  • 1971 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 233252

 Technical Specifications

  • Number of Tubes
  • 3
  • Valves / Tubes
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Storage and/or dry batteries / 12 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Digimer 1 - Iskra; Kranj, Ljubljana
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 80 x 195 x 145 mm / 3.1 x 7.7 x 5.7 inch
  • Notes

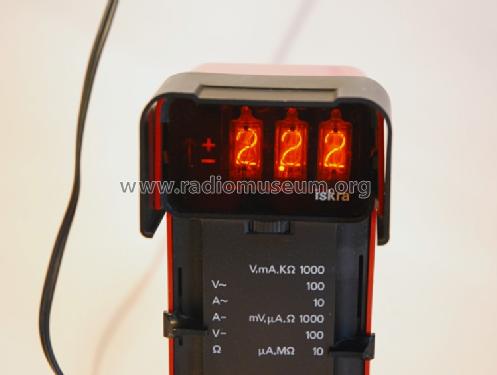

  • Digital multimeter Digimer 1 with automatic indication of polarity. It uses numerical indicator tubes and decimal point changing as needed.

    Accuracy: ± 0.5% of measuring range.
    Frequency range for AC measurement: 30 to 20,000 Hz.
    Four accessories:
    Temperature: -30 to 450°C by PT100 temperature probe.
    Capacitance: 1 nF - 10 nF - 100 nF - 1 µF - 10 µF.
    Frequency: 100 Hz - 1, 10, 100, 1000 kHz.
    Transistor Tester: Ueb - Jces - Jcbo - Jceo - Uces

    Ranges:

    • DC and AC Voltage: 100 mV - 1,000 mV - 10 - 100 - 1,000 V.
    • DC Voltage with high voltage probe: 30 kV.
    • DC and AC Current: 10 - 100 - 1,000 µA 10 - 100 - 1,000 mA.
    • DC and AC Current of Industrial frequencies with attachable shunt: 10 A
    • Resistances: 100 - 1000 Ω 10 - 100 - 1,000 kΩ 1 MΩ

    100% over-ranging does not effect the accuracy. Overload indicator.

  • Net weight (2.2 lb = 1 kg)
  • 1.160 kg / 2 lb 8.9 oz (2.555 lb)
  • Mentioned in
  • -- Original prospect or advert (“Radio Rivista” official organ of "ARI Amat. Radio Assoc." of Italy, number 5, June 1975)
