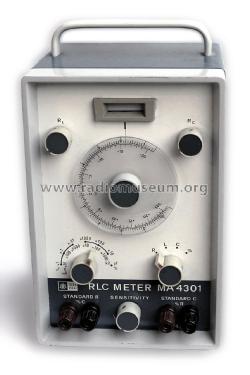

RLC Meter MA 4301

Iskra; Kranj, Ljubljana

Data
Forum
Pictures
Collections

  • Year
  • 1972 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 305173

 Technical Specifications

  • Number of Tubes
  • 2
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: RLC Meter MA 4301 - Iskra; Kranj, Ljubljana
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 160 x 240 x 150 mm / 6.3 x 9.4 x 5.9 inch
  • Notes

  • Tube operated RCL bridge.

    Measuring ranges:

    R: 10Ohm - 10 MOhm
    C: 10pF - 10uF
    L: 10mH - 10H

  • Net weight (2.2 lb = 1 kg)
  • 3.950 kg / 8 lb 11.2 oz (8.7 lb)
  • Mentioned in
  • -- Collector info (Sammler)
  • Author
  • Model page created by Danko Tkalec. See "Data change" for further contributors.
