• Country
• Yugoslavia

• Manufacturer / Brand
• Iskra; Kranj, Ljubljana

• Year
• 1963/1964 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 112931

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 482/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

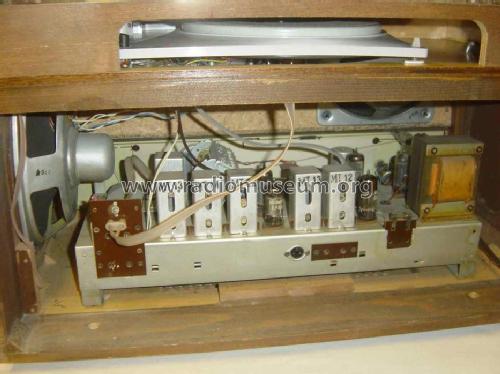

• Model: Triglav de luxe - Iskra; Kranj, Ljubljana

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 600 x 375 x 330 mm / 23.6 x 14.8 x 13 inch

• Notes

• Eingebauter Plattenspieler mit 4 Geschwindigkeiten 16/33/45/78 UpM.

  There also exists a version with EM80 magic eye tube.

  Some very rare (late) versions employed Selenium rectifier instead of EZ80 tube.



• Source of data
• - - Data from my own collection

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
