Elliptischer Lautsprecher HMS 1318/95
Isophon, E. Fritz & Co. GmbH.; Berlin
- Country
- Germany
- Manufacturer / Brand
- Isophon, E. Fritz & Co. GmbH.; Berlin
- Year
- 1973 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 358556
-
- Brand: Isophon
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 4 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Elliptischer Lautsprecher HMS 1318/95 - Isophon, E. Fritz & Co. GmbH.;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 175 x 110 x 79 mm / 6.9 x 4.3 x 3.1 inch
- Notes
-
Eigenschaften:
- Frequenzgang: 600 ÷ 16.000 Hz
- Magnetischer Fluss: 9.500 Gauss
- Impedanz: 6 Ω
GBC-Katalognummer: AC/1630-00
- Mentioned in

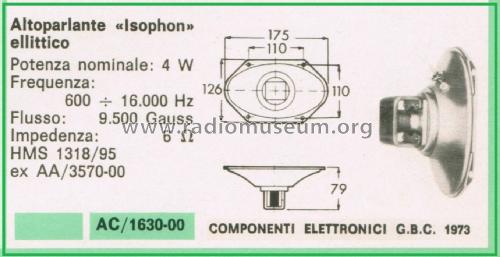

- -- Original prospect or advert (“GBC Componenti Elettronici”, Italien Ausgabe 1973.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
