Kalotten-Hochtöner KK 10C
Isophon, E. Fritz & Co. GmbH.; Berlin
- Country
- Germany
- Manufacturer / Brand
- Isophon, E. Fritz & Co. GmbH.; Berlin
- Year
- 1973 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 358889
-
- Brand: Isophon
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: Kalotten-Hochtöner KK 10C - Isophon, E. Fritz & Co. GmbH.;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 95 x 95 x 40 mm / 3.7 x 3.7 x 1.6 inch
- Notes
-
Belastbarkeit bis 50 W über Frequenzweiche in Lautsprecher-Kombinationen.
Eigenschaften:- Frequenzgang: 800 ÷ 20.000 Hz
- Magnetischer Fluss: 12.000 Gauss
- Impedanz: 4 Ω
GBC-Katalognummer: AC/2350-00
Siehe auch Isophon Kugelkalotten-Hochtonstrahler KK 10
- Mentioned in

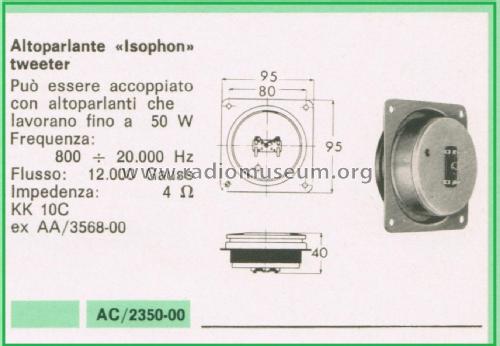

- -- Original prospect or advert (“GBC Componenti Elettronici”, Italien Ausgabe 1973.)
