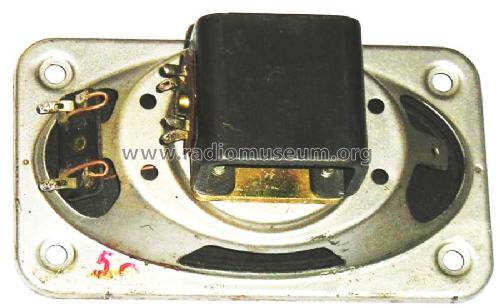

Oval-Lautsprecher P713E
Isophon, E. Fritz & Co. GmbH.; Berlin
- Country
- Germany
- Manufacturer / Brand
- Isophon, E. Fritz & Co. GmbH.; Berlin
- Year
- 1966
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 223157
-
- Brand: Isophon

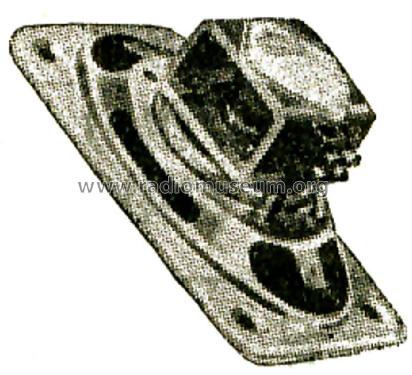

Rimpex-Katalog, 1966.
ARLT-Katalog 1964/65, S.281
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Metal case
- from Radiomuseum.org
- Model: Oval-Lautsprecher P713E - Isophon, E. Fritz & Co. GmbH.;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 75 x 54 x 130 mm / 3 x 2.1 x 5.1 inch
- Notes
-
Lautsprecherchassis, 4,5 Ω, 2 W (3,5 WSpitze).
Frequenzbereich: 100-18000 Hz, Resonanz: 185 Hz,
8000 Gauss / 13800 Maxwell.Vorgängermodell-Bezeichnung (bis ca. 1965): P713/13/8, gleiche Form.
- Price in first year of sale
- 15.00 DM
- Literature/Schematics (1)
- Rimpex-Katalog, 1966
- Author
- Model page created by a member from D. See "Data change" for further contributors.
