• Country
• Germany

• Manufacturer / Brand
• Isophon, E. Fritz & Co. GmbH.; Berlin

• Year
• 1966

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 223172

• • Brand: Isophon

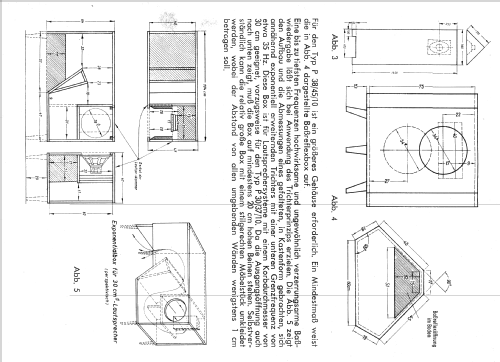

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker

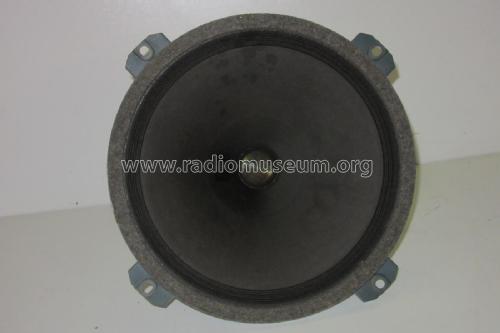

• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 30 cm = 11.8 inch

• Material
• Metal case

• from Radiomuseum.org
• Model: Rund-Lautsprecher P30/37A - Isophon, E. Fritz & Co. GmbH.;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 300 x 180 x 300 mm / 11.8 x 7.1 x 11.8 inch

• Notes

• Lautsprecherchassis, 4,5 Ω, 12,5 W (25 W_Spitze).
  Frequenzbereich: 30-7000 Hz, Resonanz: 45 Hz,
  10000 Gauss / 96500 Maxwell.

  Alte Bezeichnung vor 1965: P30/37/10 (gleiches Design)

  Bezeichnung ab ca. 1953: P30/37/11, Korb mit runden Stanzungen, offener Magnet, Übertrager.

• Net weight (2.2 lb = 1 kg)
• 3.8 kg / 8 lb 5.9 oz (8.37 lb)

• Price in first year of sale
• 102.00 DM

• Literature/Schematics (1)
• Rimpex-Katalog, 1966

• Author
• Model page created by a member from D. See "Data change" for further contributors.
